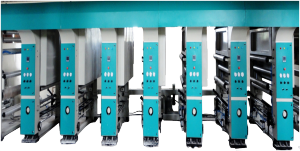

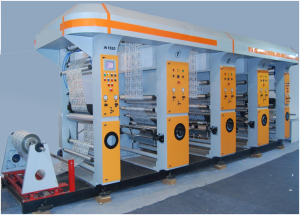

Rotogravure Printing Machine ARC-10

Call Now
+91- 972XXXX135
AvailabilityIn Stock
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Rotogravure Printing Machine ARC-10 Details

AUTO REGISTRATION MODEL

No. of Printing station up to:8 color
Max. web width:1500 mm.
Printing materials:-LDPE, HDPE, LLDPE, PPCP, HMHDPE, Pet Film (10 micron) foil (35 Micron) paper (Up to 50 GSM) Polyester (10-20 Micron) BOPP PVC, OPP, paper Etc.
Print repeat rang :-314-1100
Max. Roll Diameter :-800 mm / 500 Kgs.
Max. Operating speedupto 150 /200 Mtrs. / Min.
Web tension range:6-30 Kg,.
Unwind Tension control By means of( Digital Control AC motor)
Inlet compressed Air Pressure 6 bar( Dry & Clean Air )
Rewind tension range6-30 Automatic tension
Unwind slide displacementBy Web Aligner
Doctor blade pressure and Impression roller :Pneumatic
Registration Lateral & Longitudinal :Motorised

Special future

  • Special type quick change over C.I Doctor blade with S.S griper plate.
  • One side thread EN-9 shaft with 40 hardening for main drive cylinder & Shanthi gear ( 50 mm. )
  • Linear registration arrangement with bearing type gear box motorized registration.
  • C.I foundation based one piece for wall mounting ( Printing plate )
  • Timings belt drive arrangement for In-feed / Out-feed main drive & rewind ( Timing belt pulley & belt )
  • Central exhaust pipe between both drying chambers for all stations.
  • Load cell mounting three roll assembly arrangement for multi drive system.
  • Rack & Pinion tray lifting arrangement with gearbox.
  • Suitable fitting arrangement for 5 drive system (unwind /In-feed / out-feed / main drive and rewinding )
  • Individual Air flow separators jet in drying chamber.
  • Inspection provided in all station and rewind.
